Garage doors are one of the most used entry points in residential and commercial properties. At the heart of every well-functioning garage door is the torsion spring system. Among the wide variety of torsion springs available, the Garage Door Torsion Springs 0.225 Red Color Code model stands out due to its reliability, balance of strength, and suitability for a broad range of door sizes. This guide provides comprehensive information on this specific type of spring, covering its specifications, benefits, installation considerations, and maintenance tips.
Garage door torsion springs are mechanical components mounted horizontally above the garage door opening. They balance the door’s weight and provide the necessary force to lift and lower the door safely and smoothly. Unlike extension springs that stretch along the door’s sides, torsion springs work by twisting or “torsion” around a shaft.
The wire size of a torsion spring has a significant impact on its strength and cycle life. The garage door torque spring’s 0.225 wire size indicates that the diameter of the wire used to manufacture the spring is 0.225 inches. This specification, combined with the spring’s inside diameter and spring rate, determines the torque the spring can generate and its lifespan.
Our detailed overview of garage door springs offers a comprehensive understanding of their functionality.

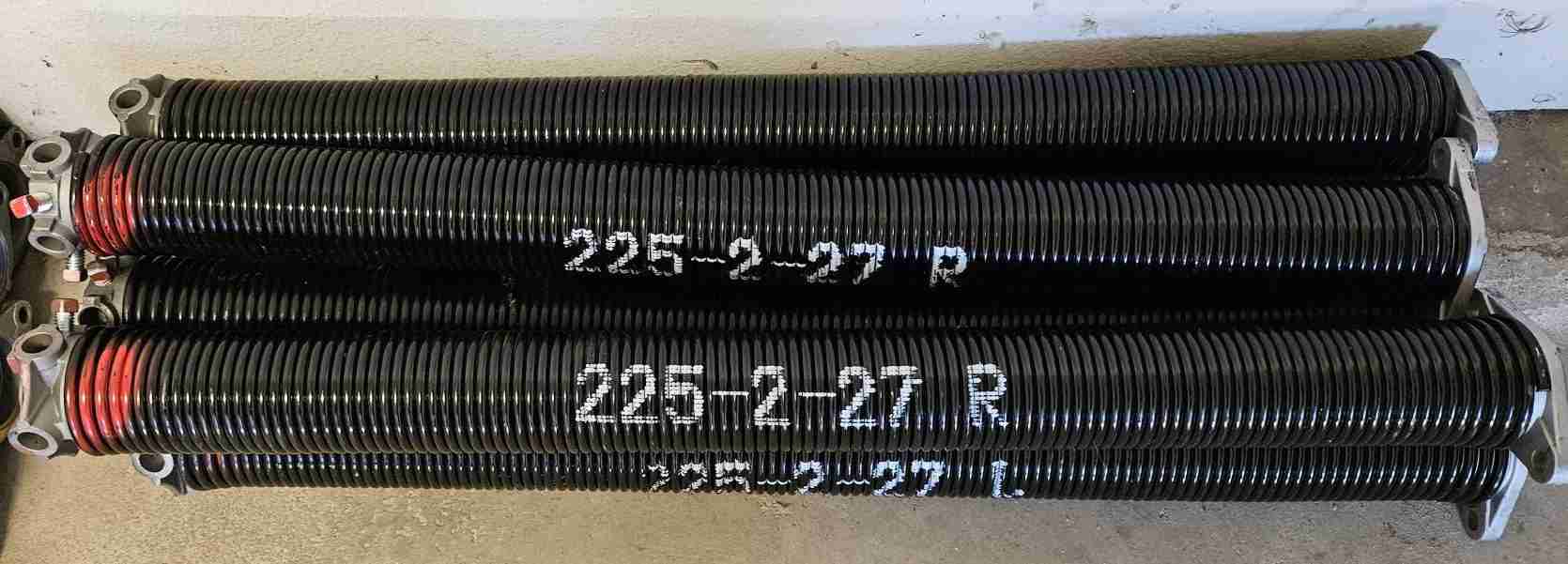

Garage door torsion springs often utilize a color-coding system to identify wire size quickly. The red color code universally corresponds to the 0.225 wire size in the garage door industry. This makes it easier for installers, technicians, and homeowners to replace or match springs without complicated measurements.
Color codes simplify maintenance and reduce errors during installations. It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that the It’s worth noting that. Therefore, selecting the correct spring requires considering additional specifications beyond the color alone.
| Specification | Value |
|---|---|
| Wire Diameter | 0.225 inches |
| Color Code | Red |
| Material | Oil-tempered or galvanized steel |
| Spring Type | Torsion |
| Use Case | Residential / Light Commercial |
| Typical Door Weight Range | 130 – 200+ lbs (depending on spring length and ID) |
| Common Inside Diameters | 1.75″, 2.0 “, 2.25” |
| Average Cycl” Life | 10,000 to 25,000 cycles |
The Garage Door Torsion Springs 0.225 are typically used in:
These springs are versatile and can be paired with various inside diameters and lengths to suit the torque requirements of a specific door.
The performance of a torsion spring isn’t defined by wire size. The inside diameter (ID) is a critical dimension that affects the torque output and fit on the torsion tube.
| Inside Diameter (ID) | Use Case |
|---|---|
| 1.75″ | Standard residential applications |
| 2.0″ | Heavy residential or light commercial |
| 2.25″ | Higher torque requirement,” / larger doors |
You may need a Garage Door Torsion Spring 0.225 if:
Always consult with a qualified technician to confirm the right spring configuration for safety and balance.
| Spring Length (inches) | Cycle Life (Approx.) |
|---|---|
| 23 | 10,000 |
| 27 | 15,000 |
| 31 | 20,000 |
| 36 | 25,000 |
Note: Longer springs increase the number of cycles because the stress is distributed over a greater length of wire.
Torsion springs operate under extreme tension. Improper handling can result in severe injury. It’s critical to:
For more information on garage door spring safety and maintenance, visit our Garage Door Springs page.
Replacing or installing Garage Door Torsion Springs 0.225 involves the following key steps:
Always follow manufacturer guidelines or hire a qualified garage door technician.
Proper maintenance can significantly extend the life of your Garage Door Torsion Springs 0.225.
| Wire Size (in inches) | Color Code |
|---|---|
| 0.192 | Yellow |
| 0.207 | Green |
| 0.218 | White |
| 0.225 | Red |
| 0.234 | Brown |
| 0.243 | Gold |
For more details on different wire gauges and their applications, you can explore our article on Garage Door Torsion Springs, specifically the 0.207 wire gauge yellow.
The red color code indicates a wire diameter of 0.225 inches. It is used to identify wire size in the field quickly.
It is not recommended unless you have training and the proper tools. Torsion springs are under high tension and can be dangerous to handle without experience.
Depending on the length and cycle rating, they typically last between 10,000 and 25,000 cycles. One cycle equals one full open and close.
No. While they share the same wire size, other variables, such as length and inside diameter, affect their torque and compatibility.
The number of turns is based on the height of your garage door. Typically, 7.5 turns are required for a 7-foot door. Always verify with the manufacturer or a technician.
Mixing wire sizes is not advised unless a professional calculates them. It may result in an unbalanced door, straining the opener and posing safety risks.
The new spring may not be correctly wound or may not match the door’s weight, and the configurator’s balance test can help confirm this.
